Select Area Settings
Getting Started

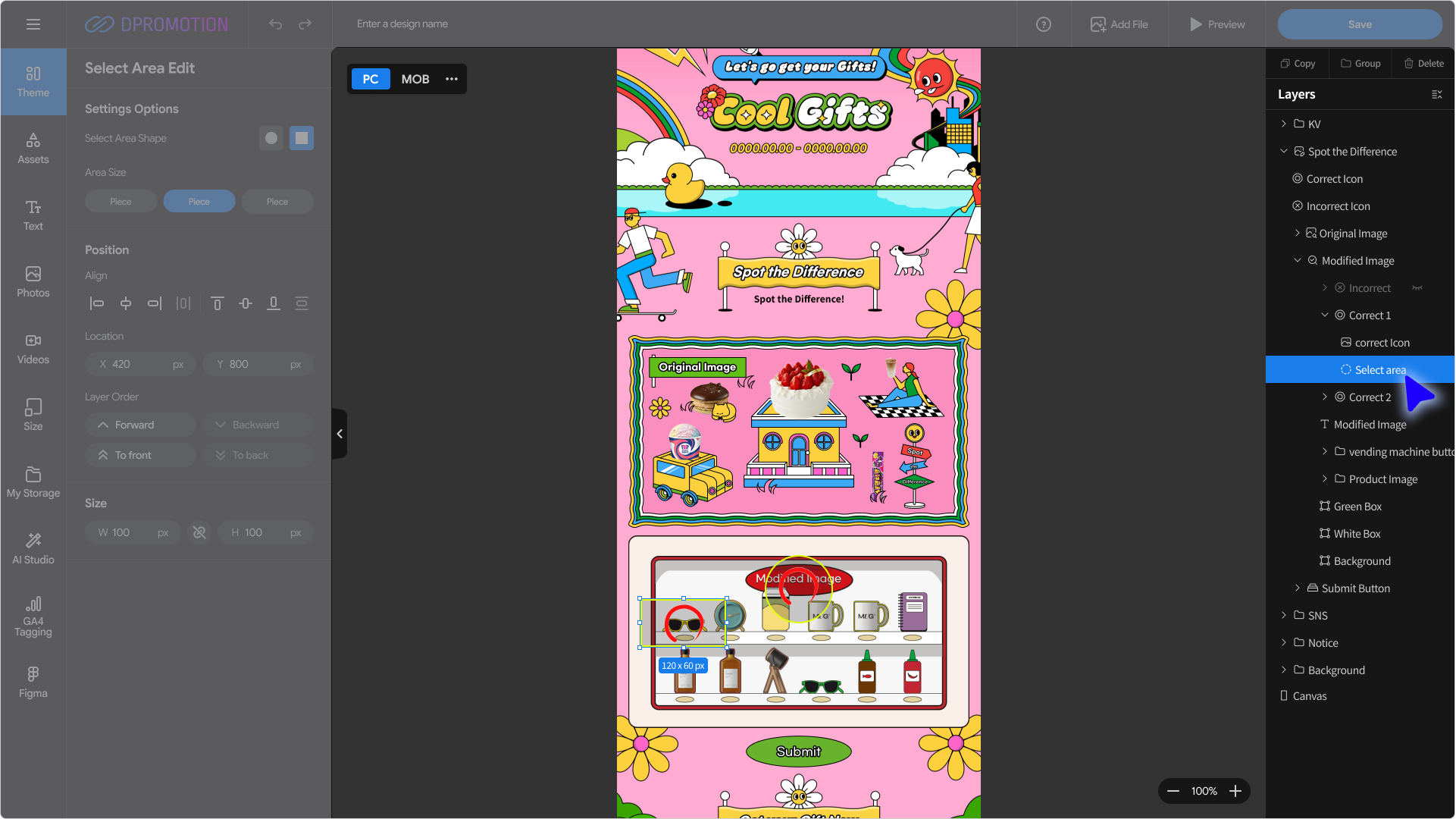

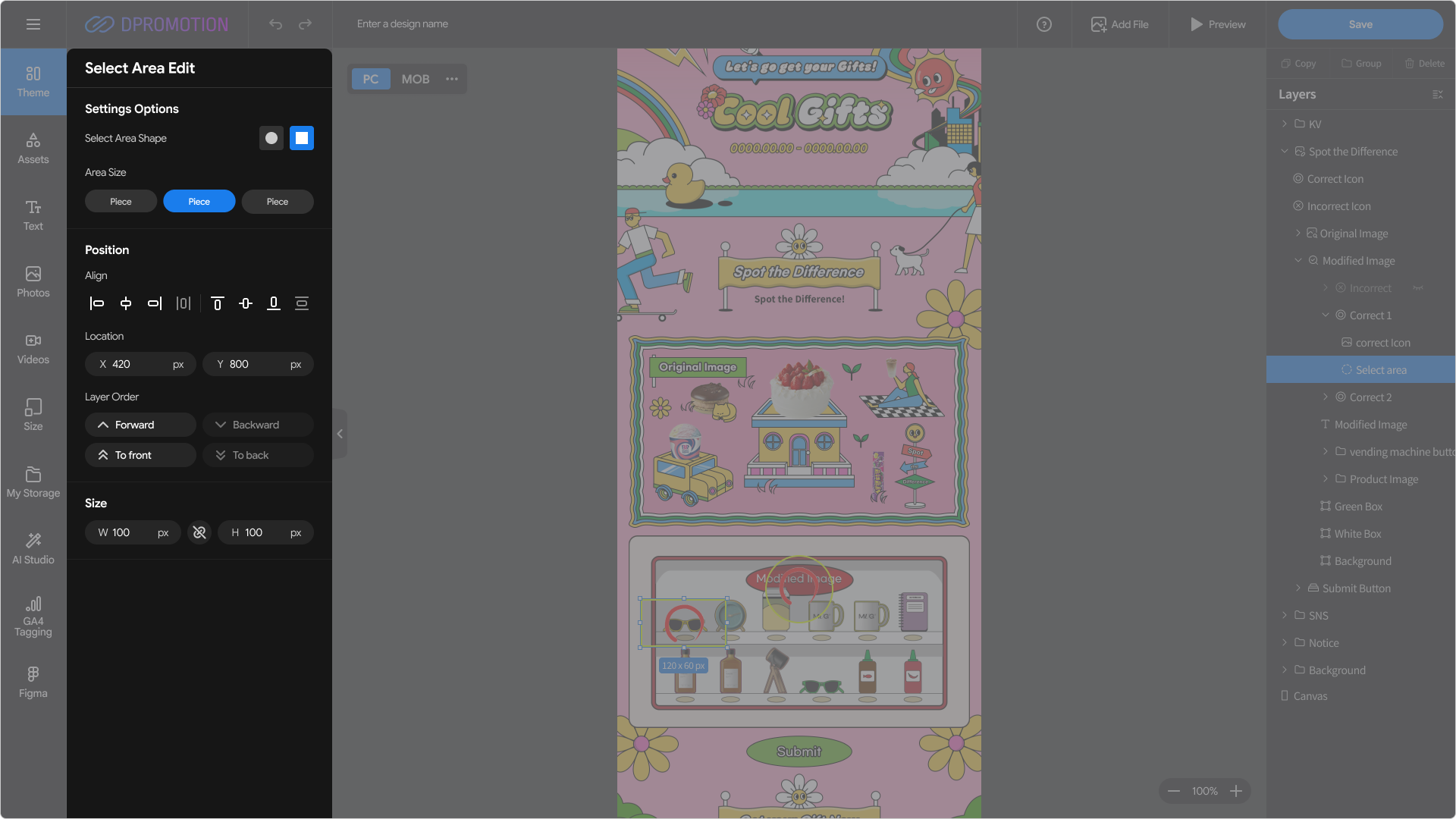

Double-click the Select Area of a Correct template in the design editor, or select the Select area layer under a Correct template (Correct 1, Correct 2...) in the Layers panel on the right to open the Select Area Edit settings panel on the left.
- The Select Area defines the range that is recognized as correct when a participant selects a specific area of the Modified Image.
- Each Select Area is linked to its corresponding Correct template and should be positioned and sized according to the correct area in the Modified Image.
Setting Option

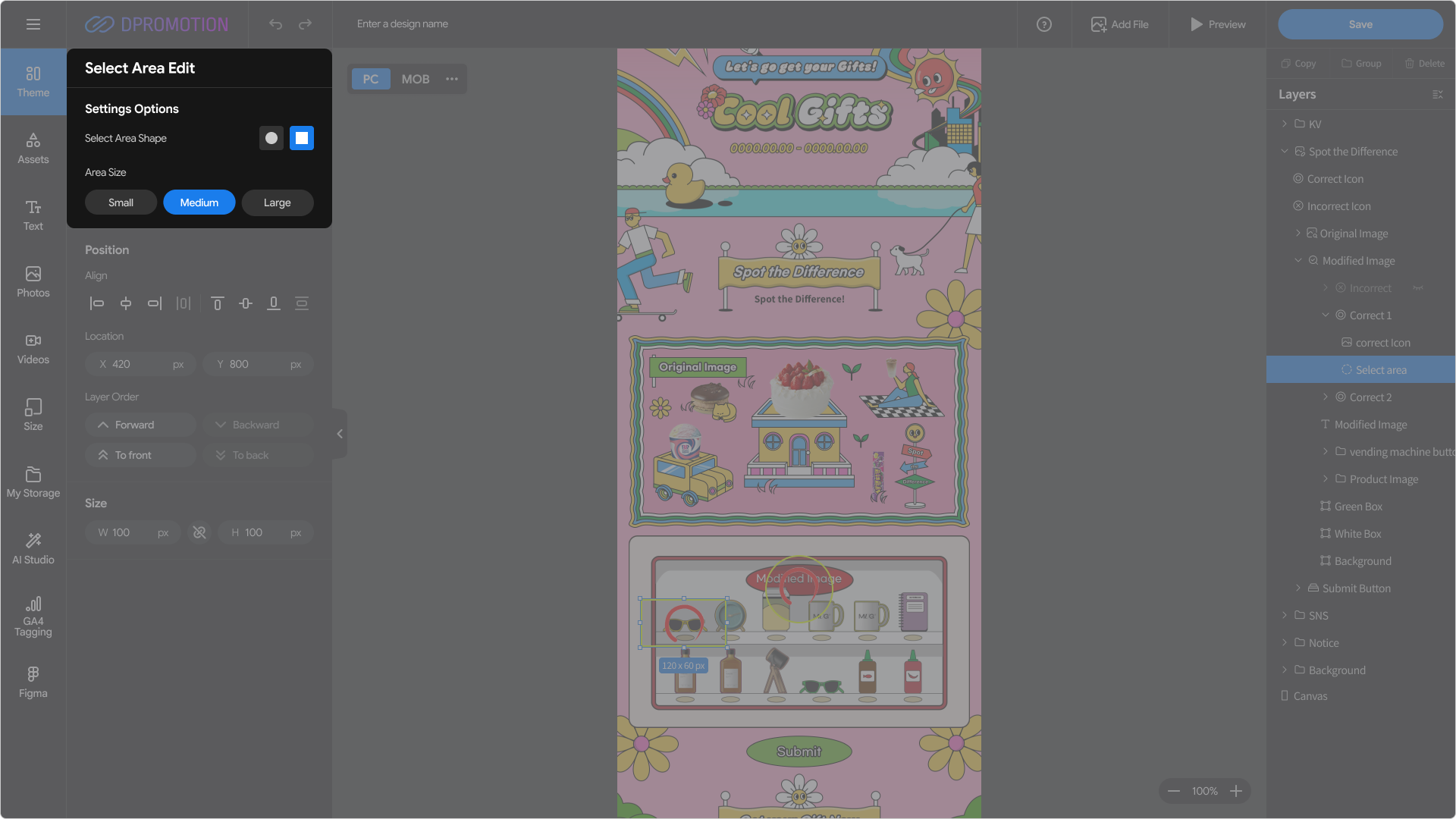

In the Settings Options of the Select Area Edit settings panel, set the shape (Select Area Shape) and size (Area Size) of the Select Area.

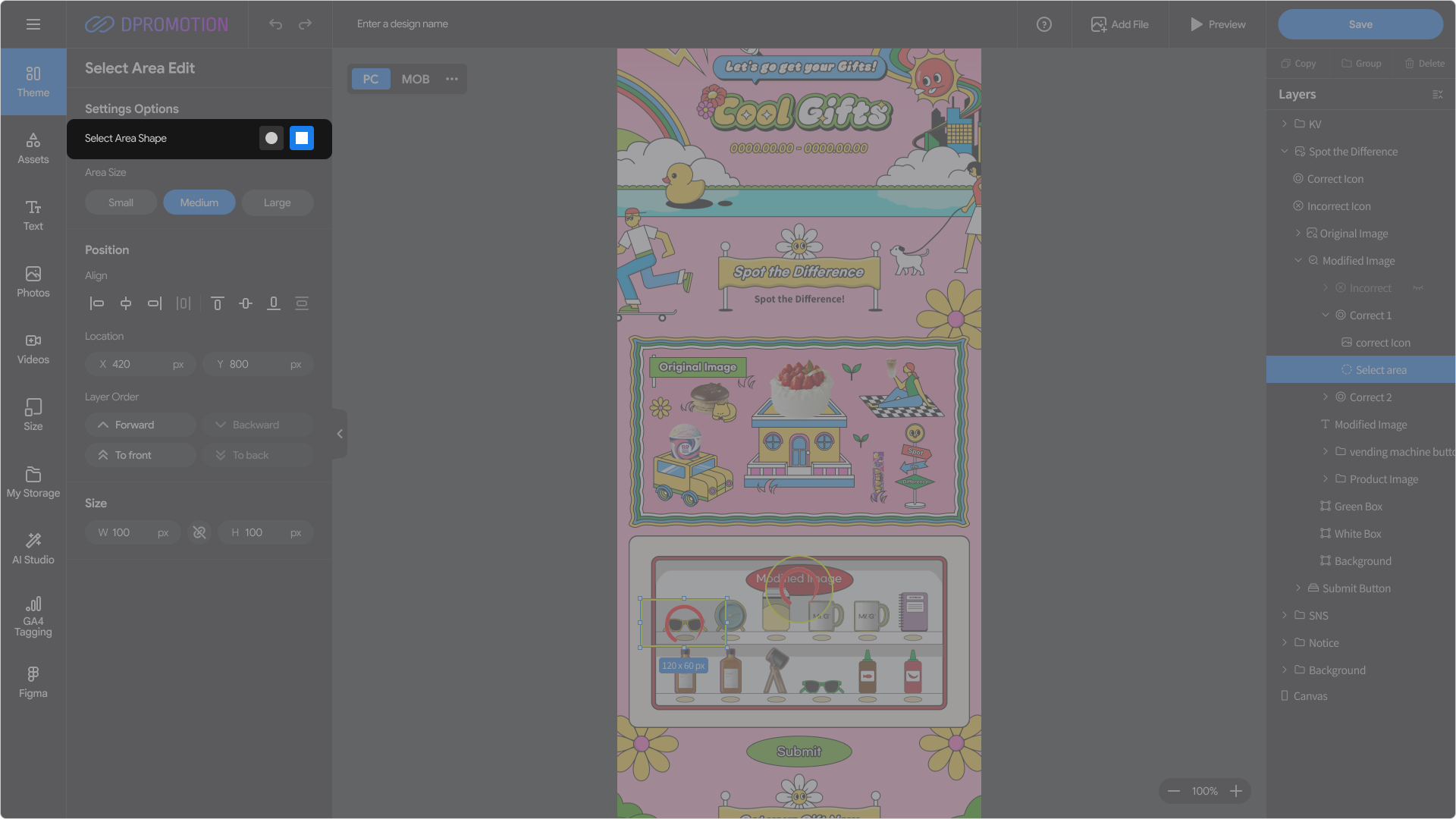

In the Select Area Shape section, set the shape of the Select Area to be recognized as correct in the Modified Image.
- Select a circular or rectangular shape that is appropriate for the correct area in the Modified Image.
- The Select Area is not a design element displayed directly to participants. It is used to determine correct answers, so make sure it includes the correct area in the Modified Image.

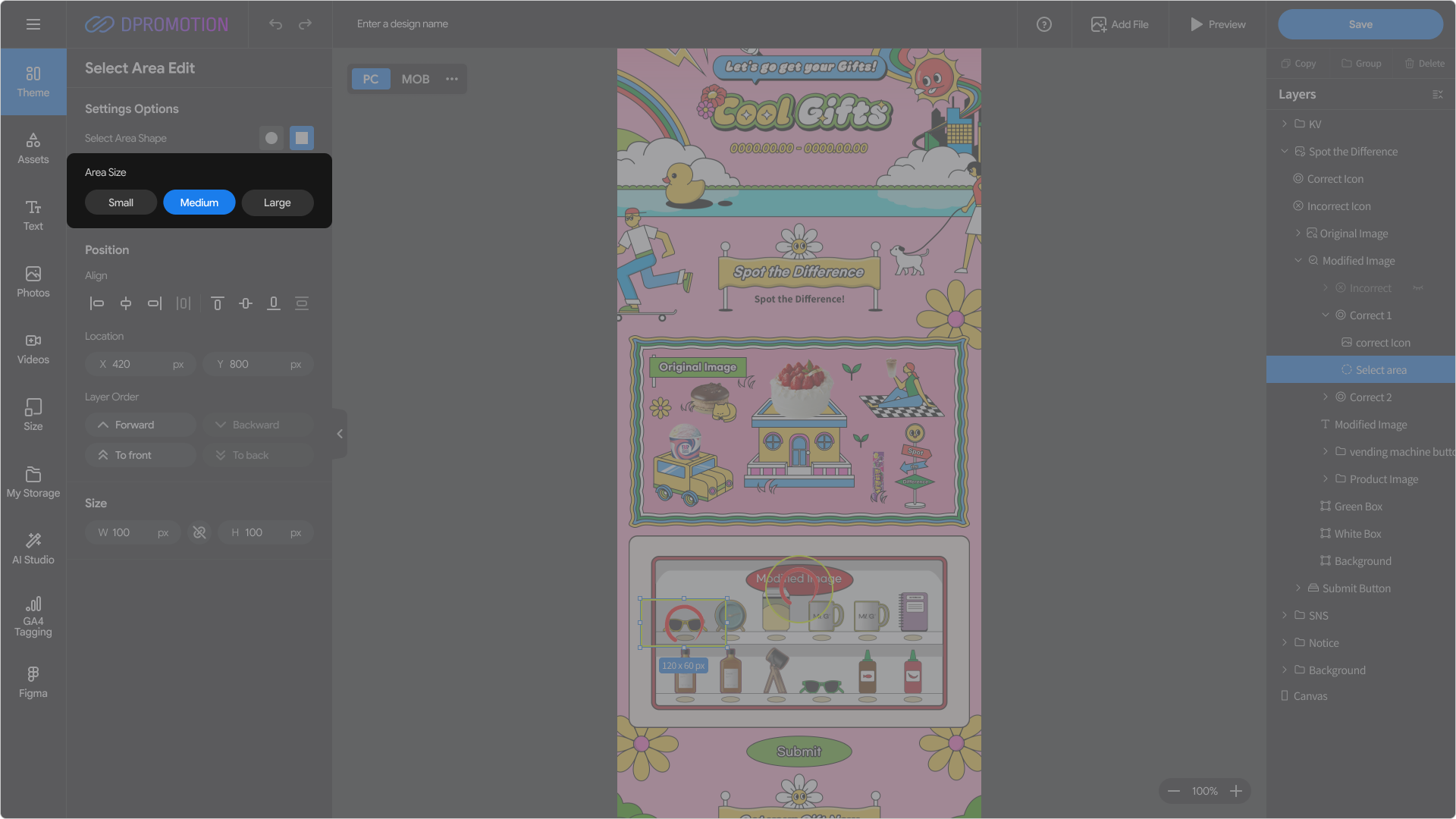

In the Area Size section, set the default size of the Select Area by selecting Small, Medium, or Large.
- Set an appropriate Select Area size according to the size of the correct area in the Modified Image.
- After selecting a default size in Area Size, you can fine-tune the width and height of the Select Area in the Size section below.
Position

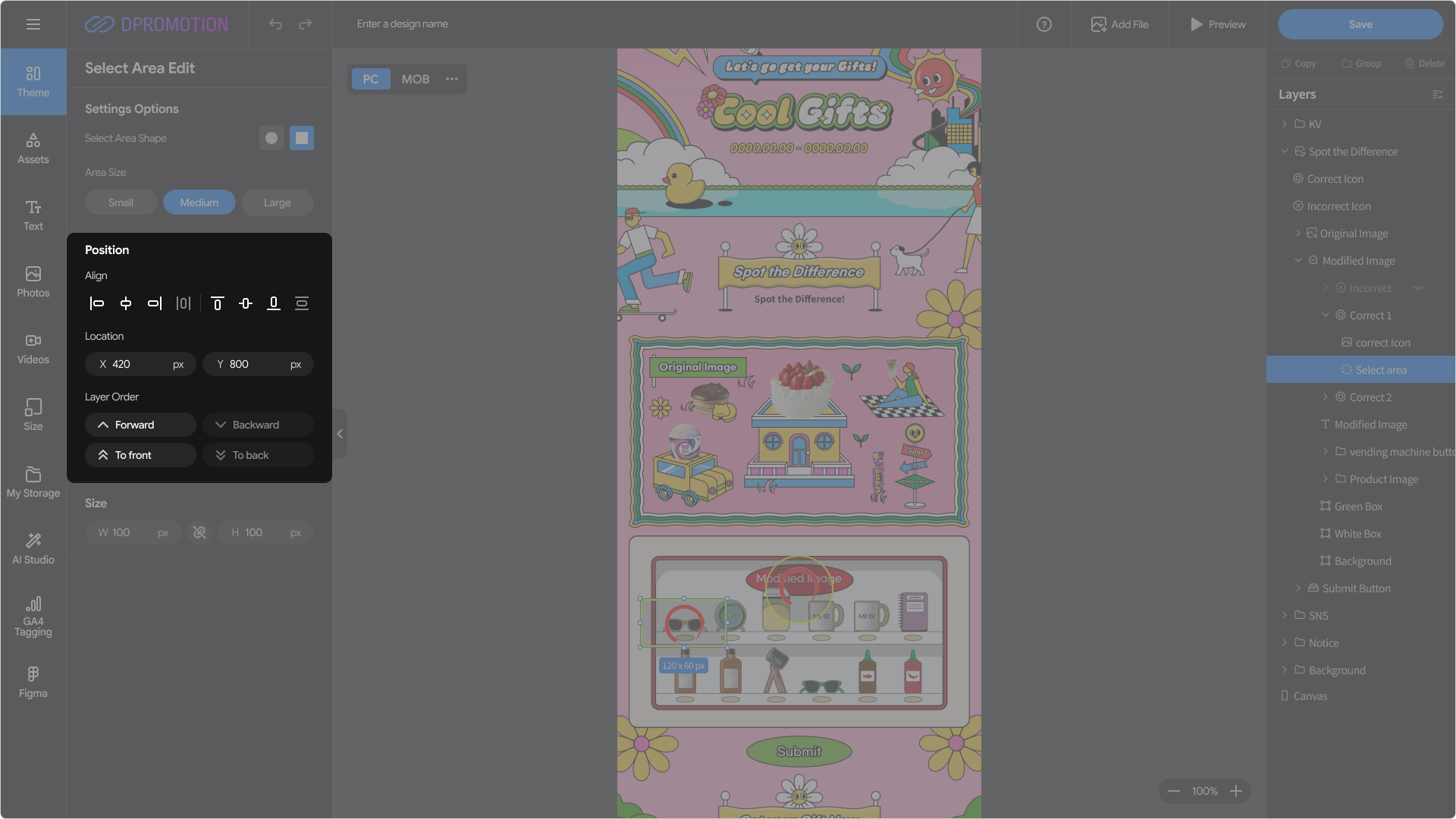

To set the Align, Location, and Layer Order of the Select Area, use the Position section in the Select Area Edit settings panel.

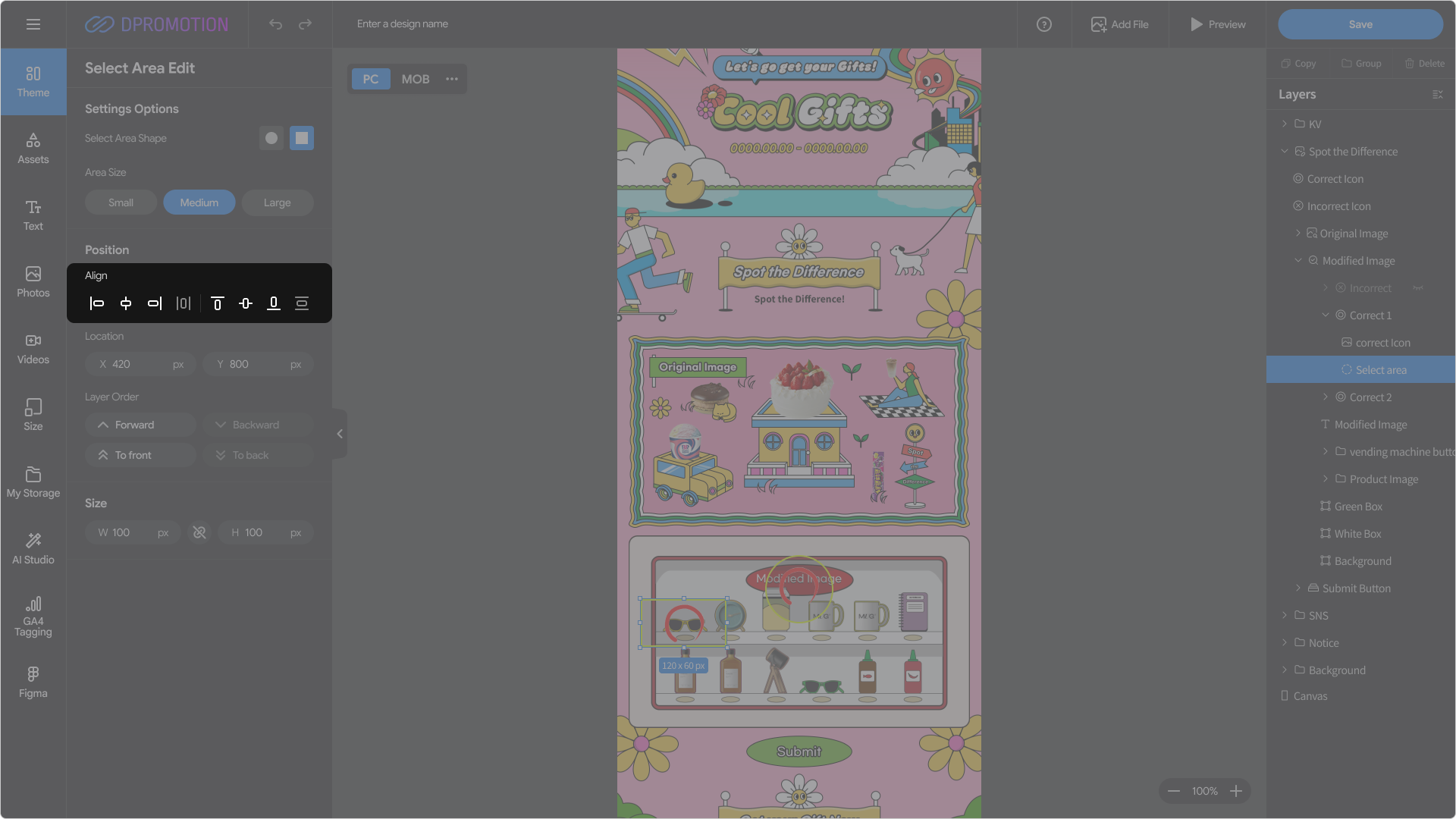

Click an alignment icon button in the Align section to align the Select Area to the left, center, right, top, middle, or bottom.

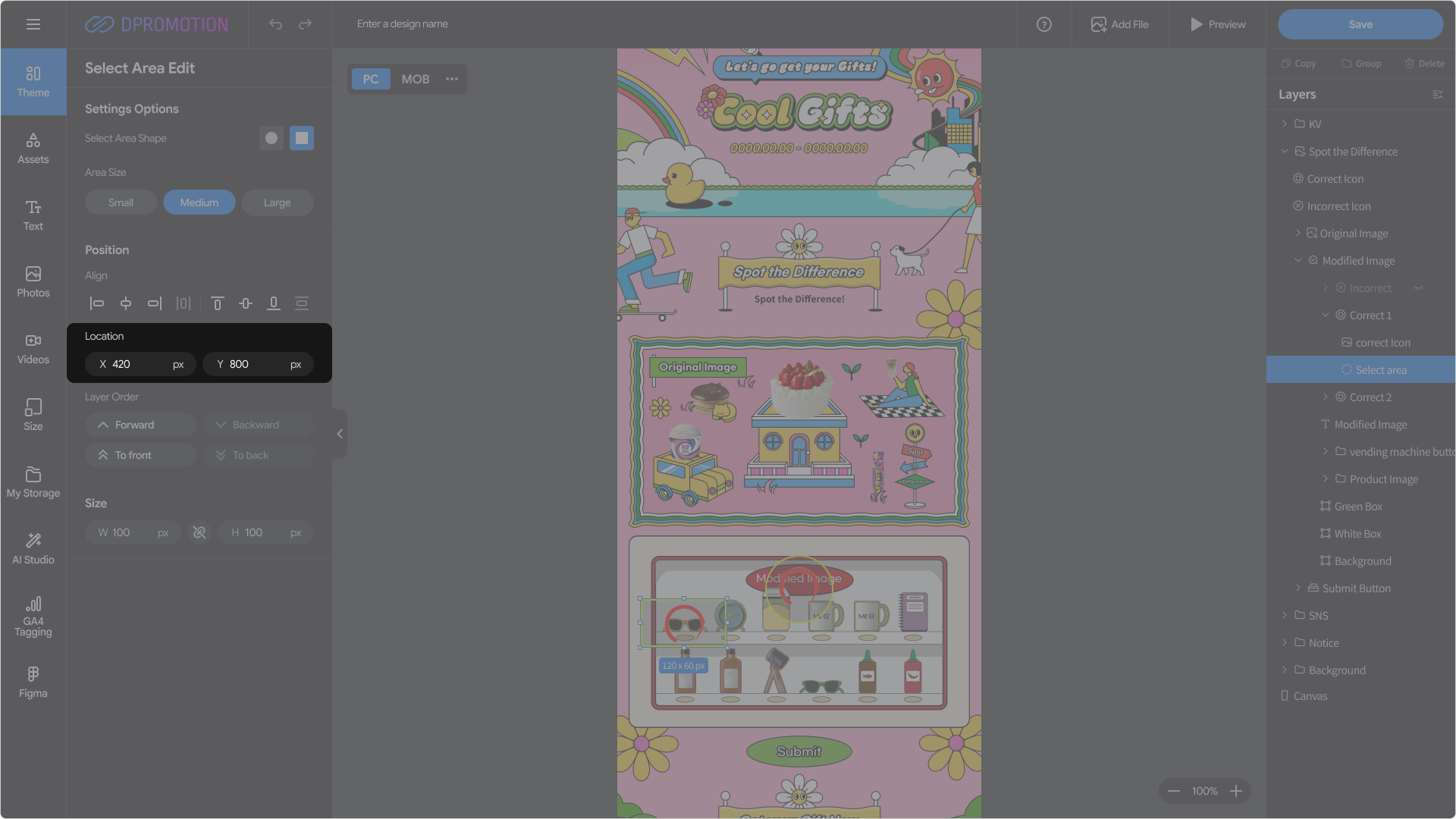

In the Location section, set the X/Y coordinates of the Select Area.
- Use drag and drop to move the Select Area directly to the correct position in the Modified Image.
- You can also set the X/Y coordinates of the Select Area using keyboard shortcuts.
| Function | Window | MAC |
| Move up 1px | Up(↑) | Up(↑) |
| Move down 1px | Down(↓) | Down(↓) |
| Move left 1px | Left(←) | Left(←) |
| Move right 1px | Right(→) | Right(→) |
| Move up 10px | shift + Up(↑) | shift + Up(↑) |
| Move down 10px | shift + Down(↓) | shift + Down(↓) |
| Move left 10px | shift + Left(←) | shift + Left(←) |
| Move right 10px | shift + Right(→) | shift + Right(→) |

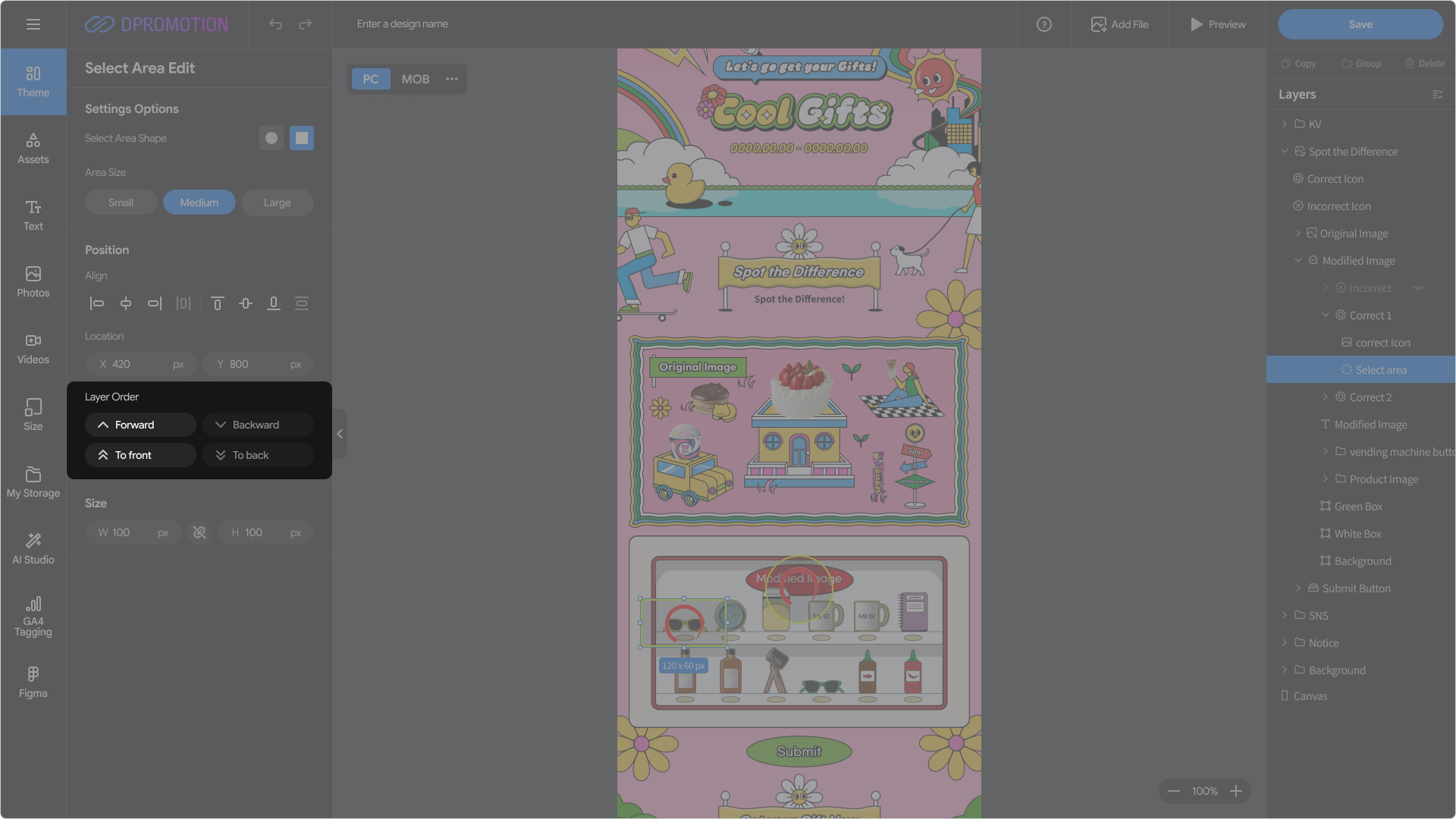

In the Layer Order section, set the front/back stacking order of the Select Area relative to other elements on the canvas using Forward, Backward, To front, or To back.
- Forward : Move the Select Area forward by one layer.
- Backward : Move the Select Area backward by one layer.
- To front : Move the Select Area in front of all other elements on the canvas.
- To back : Move the Select Area behind all other elements on the canvas.
- You can also set the stacking order of elements in the editor by dragging and dropping layers in the Layers panel on the right.
- You can also set the stacking order of the Select Area using keyboard shortcuts.
| Function | Window | MAC |
| Move forward one layer | Ctrl + ] | ⌘ + ] |
| Move backward one layer | Ctrl + [ | ⌘ + [ |
| Bring to front | Ctrl + shift + ] | ⌘ + shift + ] |
| Send to back | Ctrl + shift + [ | ⌘ + shift + [ |
Size

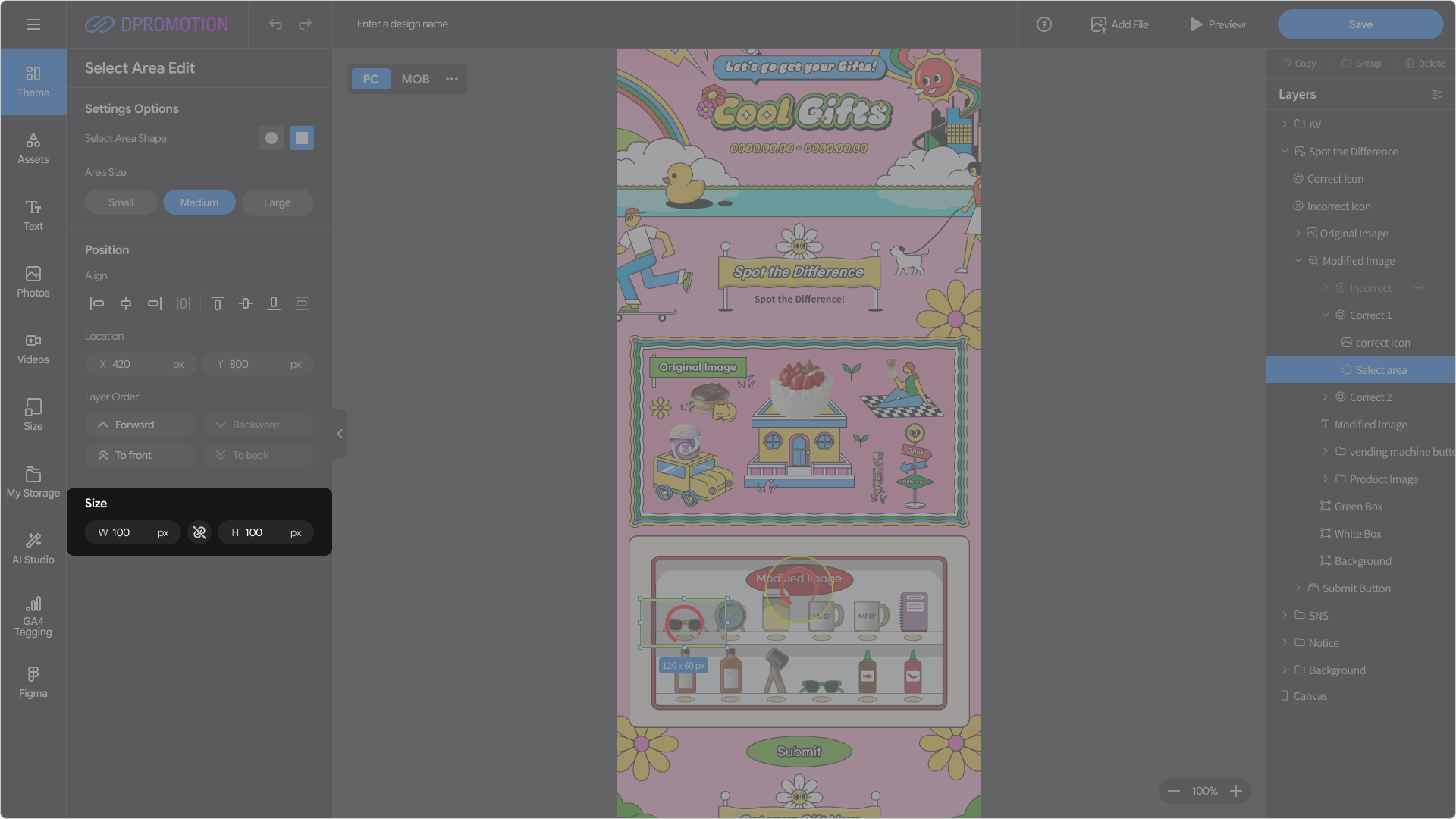

In the Size section of the Select Area Edit settings panel, set the size of the Select Area (width and height).
- Drag the corner or side handles displayed when the Select Area is selected to adjust the size of the Select Area.
- Adjust the size of the Select Area so that it includes the correct area in the Modified Image without excessively including surrounding areas.
| Function | Window | MAC |
|
Resize freely |
Drag a corner handle | Drag a corner handle |
|
Resize proportionally |
Shift + Drag a corner handle | Shift + Drag a corner handle |
|
Resize width/height |
Drag a side handle | Drag a side handle |
